Couplings - BR-CPL-TXX
| Tube Size TXX |

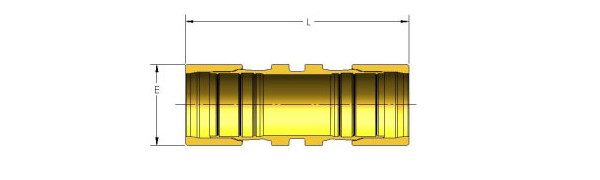

Ordering Information | Dimensions | LOKTOOLTM | ||||
| Fitting Material | Shape | Fitting Size TXX |
Part Length (Uninstalled) L |
E |
Take -
Out A |
Installation Tool Kit |
|
| 3/8 | BR | - CPL - | T06 | 2.47 | 0.91 | N/A | IT20 |
| 1/2 | BR | - CPL - | T08 | 2.47 | 0.91 | N/A | IT20 |
| 5/8 | BR | - CPL - | T10 | 2.82 | 1.02 | N/A | IT20 |
| 3/4 | BR | - CPL - | T12 | 3.11 | 1.19 | N/A | IT20 |
| 1 | BR | - CPL - | T16 | 4.07 | 1.53 | N/A | IT50 |
| 1 - 1/4 | BR | - CPL - | T20 | 4.62 | 1.86 | N/A | IT50 |
| 1 - 1/2 | BR | - CPL - | T24 | 5.28 | 2.21 | N/A | IT50 |
| 2 | BR | - CPL - | T32 | 6.88 | 2.88 | N/A | IT50 |
