Drop Tees - Stainless Steel Tube Fittings
| Tube Size OD |

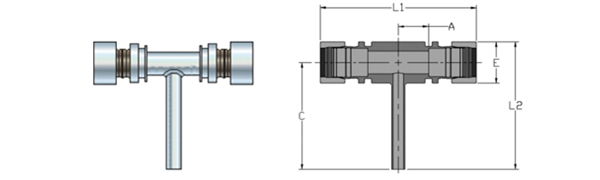

Ordering Information | Dimensions | LOKTOOLTM | ||||||
| Fitting Material | Shape | Fitting Size TXX-0YY | Part Length (Uninstalled) L1 |
Part Length (Uninstalled) L2 |
E |
Take -
Out A |
Take -
Out C |
Installation Tool Kit |
|
| 1/2 | SS | - TEE - | T08-001 | 4.34 | 3.69 | 0.87 | 0.83 | 3.26 | IT10 / IT20 |
| 5/8 | SS | - TEE - | T10-001 | 4.84 | 3.85 | 1.05 | 0.89 | 3.33 | IT20 |
| 3/4 | SS | - TEE - | T12-001 | 4.91 | 3.98 | 1.17 | 0.89 | 3.40 | IT20 |
| 7/8 | SS | - TEE - | T14-001 | 4.66 | 4.02 | 1.19 | 0.85 | 3.43 | IT20 |
| 1 | SS | - TEE - | T16-001 | 4.97 | 4.22 | 1.37 | 0.90 | 3.54 | IT20 / IT45 |
| 1-1/4 | SS | - TEE - | T20-001 | 5.94 | 4.60 | 1.80 | 0.94 | 3.70 | IT45 |
| 1-1/2 | SS | - TEE - | T24-001 | 6.15 | 4.91 | 2.10 | 0.96 | 3.86 | IT45 / IT50 / IT60 |
| 2 | SS | - TEE - | T32-001 | 7.26 | 5.36 | 2.55 | 0.98 | 4.08 | IT50 / IT60 |
| 2-1/2 | SS | - TEE - | T40-001 | 9.73 | 5.91 | 3.10 | 1.60 | 4.36 | IT60 |
