Gauge Port Couplings - BR-GCPL-TXX
| Tubing Size TXX |

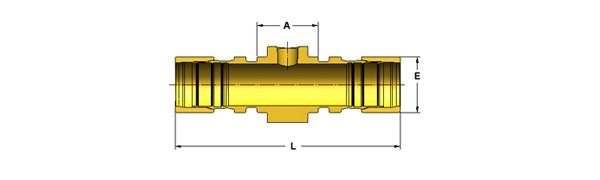

Ordering Information | Dimensions | LOKTOOL™ | ||||
| Fitting Material | Shape | Fitting Size TXX |
Part Length (Uninstalled) L |
E |
Take-Out A |
Installation Tool Kit |
|
| 1/2 | BR | - GCPL - | T08 | 3.78 | 0.91 | 0.75 | IT20 |
| 5/8 | BR | - GCPL - | T10 | 5.45 | 1.02 | 0.70 | IT20 |
| 3/4 | BR | - GCPL - | T12 | 4.15 | 1.19 | 0.75 | IT20 |
| 1 | BR | - GCPL - | T16 | 4.41 | 1.53 | 0.60 | IT50 |
| 1 - 1/4 | BR | - GCPL - | T20 | 6.20 | 1.86 | 0.68 | IT50 |
| 1 - 1/2 | BR | - GCPL - | T24 | 7.07 | 2.21 | 0.60 | IT50 |
| 2 | BR | - GCPL - | T32 | 7.09 | 2.88 | 0.75 | IT50 |
