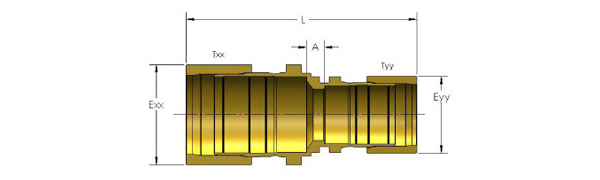

Reducers - BR-RED-TXX-TYY
| Tubing Size TXX | Ordering Information | Dimensions | LOKTOOLTM | |||||
| FittingMaterial | Shape | Fitting SizeTXX-TYY | Part Length (Uninstalled) L | Take-Out,A | Exx | Eyy | Installation Tool Kit | |
| 1/2 - 3/8 | BR | - RED - | T08 - T06 | 2.47 | 0.42 | 0.91 | 0.91 | IT20 |
| 5/8 - 1/2 | BR | - RED - | T10 - T08 | 2.84 | 0.19 | 1.02 | 0.91 | IT20 |
| 3/4 - 1/2 | BR | - RED - | T12 - T08 | 3.17 | 0.38 | 1.19 | 0.91 | IT20 |
| 3/4 - 5/8 | BR | - RED - | T12 - T10 | 3.15 | 0.19 | 1.19 | 1.02 | IT20 |
| 1 - 1/2 | BR | - RED - | T16 - T08 | 2.47 | 0.42 | 0.91 | 0.91 | IT20 |
| 1 - 3/4 | BR | - RED - | T16 - T12 | 3.95 | 0.36 | 1.53 | 1.19 | IT50 |
| 1-1/4 - 1 | BR | - RED - | T20 - T16 | 4.61 | 0.27 | 1.86 | 1.53 | IT50 |
| 1-1/2 - 1-1/4 | BR | - RED - | T24 - T20 | 5.27 | 0.32 | 2.21 | 1.86 | IT50 |
| 2 - 1-1/2 | BR | - RED - | T32 - T24 | 6.58 | 0.51 | 2.88 | 2.21 | IT50 |
