Tees - Stainless Steel Tube Fittings
| Tube Size OD |
Ordering Information | Dimensions | LOKTOOLTM | |||||

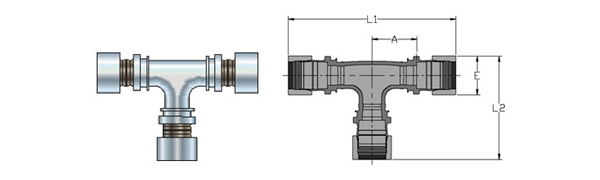

| Fitting Material | Shape | Fitting Size TXX | Part Length (Uninstalled) L1 |
Part Length (Uninstalled) L2 |
E |
Take -
Out A |
Installation Tool Kit |
|
| 1/4 | SS | -TEE- | T04 | - | - | - | * | IT04 / IT10 / IT20 |
| 3/8 | SS | -TEE- | T06 | 6.08 | 3.40 | 0.72 | 1.15 | IT10 / IT20 |
| 1/2 | SS | -TEE- | T08 | 4.60 | 2.73 | 0.87 | 0.96 | IT10 / IT20 |
| 5/8 | SS | -TEE- | T10 | 5.16 | 3.10 | 1.05 | 1.05 | IT10 / IT20 |
| 3/4 | SS | -TEE- | T12 | 5.95 | 3.56 | 1.17 | 1.41 | IT20 |
| 7/8 | SS | -TEE- | T14 | 5.57 | 3.38 | 1.19 | 1.31 | IT20 |
| 1 | SS | -TEE- | T16 | 5.78 | 3.57 | 1.37 | 1.30 | IT20 |
| 1-1/4 | SS | -TEE- | T20 | 7.58 | 4.69 | 1.80 | 1.88 | IT45 |
| 1-1/2 | SS | -TEE- | T24 | 8.58 | 5.34 | 2.10 | 2.29 | IT45 / IT50 |
| 2 | SS | -TEE- | T32 | 11.72 | 7.14 | 2.55 | 3.21 | IT50 / IT60 |
| 2-1/2 | SS | -TEE- | T40 | 13.20 | 8.15 | 3.10 | 3.30 | IT60 |
