Male Connectors (37° Flare Straight Thread) - Stainless Steel Tube Fittings
| Tube Size O.D. |
Ordering Information | Dimensions | Thread | LOKTOOLTM | |||||

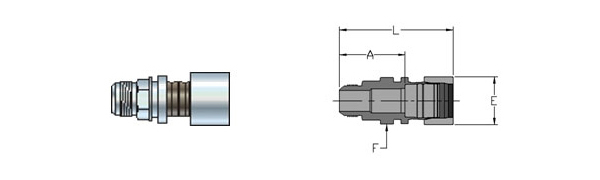

| Fitting Material | Shape | Fitting Size TXX-37ANYY | Part Length (Uninstalled) L |
E |
Take -
Out A |
Across Wrench Flats F |
Installation Tool Kit |
||
| 1/4 | SS | -ADPT- | T04 - 37AN0.25 | 2.04 | 0.54 | 1.17 | 0.50 | 7/16 - 20 UNF | IT04 / IT10 / IT20 |
| 3/8 | SS | -ADPT- | T06 - 37AN0.375 | 2.41 | 0.72 | 1.15 | 0.63 | 9/16 - 18 UNF | IT10 / IT20 |
| 1/2 | SS | -ADPT- | T08 - 37AN0.50 | 2.60 | 0.87 | 1.26 | 0.81 | 3/4 - 16 UNF | IT10 / IT20 |
| 5/8 | SS | -ADPT- | T10 - 37AN0.625 | 3.03 | 1.05 | 1.49 | 0.94 | 7/8 - 14 UNF | IT20 |
| 3/4 | SS | -ADPT- | T12-37AN0.75 | 3.34 | 1.17 | 1.78 | 1.13 | 1 1/16 - 12 UN | IT20 |
| 7/8 | SS | -ADPT- | T14-37AN0.875 | 3.36 | 1.19 | 1.88 | 1.25 | 1 3/16 - 12 UN | IT20 |
| 1 | SS | -ADPT- | T16-37AN1.00 | 3.52 | 1.37 | 1.93 | 1.38 | 1 5/16 - 12 UN | IT20 / IT45 |
| 1-1/4 | SS | -ADPT- | T20-37AN1.25 | 4.34 | 1.80 | 2.31 | 1.69 | 1 5/8 - 12 UN | IT45 |
| 1-1/2 | SS | -ADPT- | T24-37AN1.50 | 5.12 | 2.10 | 3.00 | 2.00 | 1 7/8 - 12 UN | IT45 / IT50 / IT60 |
