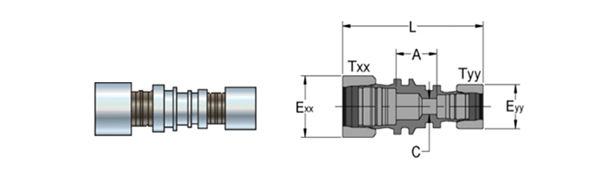

Reducers - Stainless Steel Tube Fittings
| Tube Size OD |
Ordering Information | Dimensions | LOKTOOLTM | ||||||
| Fitting Material | Shape | Fitting Size TXX-TYY | Part Length (Uninstalled) L |
Exx |
Eyy |
Take -
Out A |
C | Installation Tool Kit |
|
| 3/8 - 1/4 | SS | -RED- | T06-T04 | 3.29 | 0.72 | 0.54 | 1.16 | 0.16 | IT10 / IT20 |
| 1/2 - 1/4 | SS | -RED- | T08-T04 | 3.18 | 0.87 | 0.54 | 0.97 | 0.16 | IT10 / IT20 |
| 1/2 - 3/8 | SS | -RED- | T08-T06 | 3.30 | 0.87 | 0.72 | 0.70 | 0.30 | IT10 / IT20 |
| 5/8 - 1/2 | SS | -RED- | T10-T08 | 3.61 | 1.05 | 0.87 | 0.74 | 0,41 | IT10 /IT20 |
| 3/4 - 1/2 | SS | -RED- | T12-T08 | 3.55 | 1.17 | 0.87 | 0.64 | 0.41 | IT20 |
| 3/4 - 5/8 | SS | -RED- | T12-T10 | 3.83 | 1.17 | 1.05 | 0.74 | 0.54 | IT20 |
| 7/8 - 3/4 | SS | -RED- | T14-T12 | 3.75 | 1.19 | 1.17 | 0.71 | 0.67 | IT20 |
| 1 - 1/2 | SS | -RED- | T16 - T08 | 3.99 | 1.37 | 0.87 | 1.06 | 0.41 | IT20 |
| 1 - 3/4 | SS | -RED- | T16-T12 | 3.82 | 1.37 | 1.17 | 1.34 | 0.67 | IT20 |
| 1 - 7/8 | SS | -RED- | T16-T14 | 3.90 | 1.37 | 1.19 | 0.84 | 0.76 | IT20 |
| 1-1/4 - 1 | SS | -RED- | T20-T16 | 4.52 | 1.80 | 1.37 | 0.90 | 0.83 | IT45 |
| 1-1/4 - 3/4 | SS | -RED- | T24-T12 | 4.83 | 2.10 | 1.17 | 1.15 | 0.66 | IT20 & IT45 /IT50/IT60 |
| 1-1/2 - 1 | SS | -RED- | T24-T16 | 4.71 | 2.10 | 1.37 | 1.00 | 0.87 | IT20 & IT45 /IT50/IT60 |
| 1-1/2 - 1-1/4 | SS | -RED- | T24-T20 | 5.00 | 2.10 | 1.80 | 0.84 | 1.09 | IT45 |
| 2 - 1-1/4 | SS | -RED- | T32-T20 | 5.82 | 2.55 | 1.80 | 1.13 | 1.09 | IT45 |
| 2 - 1-1/2 | SS | -RED- | T32-T24 | 6.20 | 2.55 | 2.10 | 1.43 | 1.33 | IT50/IT60 |
